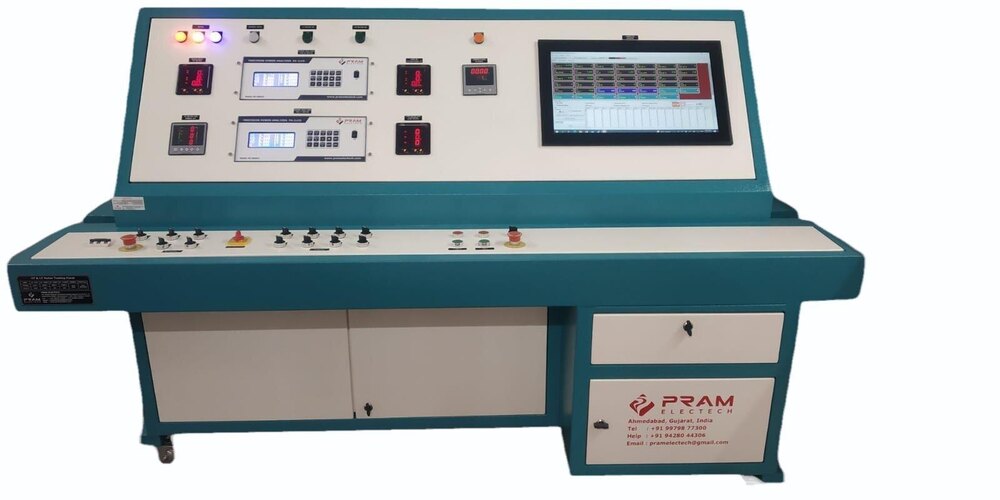

AC Induction Motor Test Bench

Name

Specification

Item Descriptions

1.

MotorTesting Panel

Routine Testing Panel for Induction Motor

415V, 50A

VIF Meter Setting

For CT P :- Set 50A(Mains Supply)

PT P :- Set 350V(Mains Supply)

For PT S:- Set 350V(Mains Supply)

2.

Over Current Relay Settings

DOL M1 Output

0.12KW-0.18KW

For CT.P :- Set 10A | CT S :- Set 5A (Default)

For SOC :- Set 0.8A | Trp :- Set 2 Sec

3.

Over Current Relay Settings

DOL M2 Output

0.25KW-3KW

For CT.P :- Set 10A | CT S :- Set 5A (Default)

For SOC :- Set 7A | Trp :- Set 2 Sec

Over Current Relay Settings

DOL M3 Output

4KW-11KW

For CT.P :- Set 30A | CT S :- Set 5A (Default)

For SOC :- Set 20A | Trp :- Set 2 Sec

Over Current Relay Settings

15KW-22KW

For CT.P :- Set 50A | CT S :- Set 5A (Default)

For SOC :- Set 37A | Trp :- Set 2 Sec

6.

Power Analyzer

Voltage:- 600 VAC

Current:- 80 AAC

Phase:- 3-Phase

3-Phase Power Analyzer 600V (Phase ï Neutral) & 1050V (Phase to Phase) & 80A Direct Measurement with accuracy of ï0.1% rdg + ï0.1% rng

7.

Break Output

5A

415V ï 5A AC, 230V ï 5A AC, 110V ï 5A AC, 24V - 5A DC
