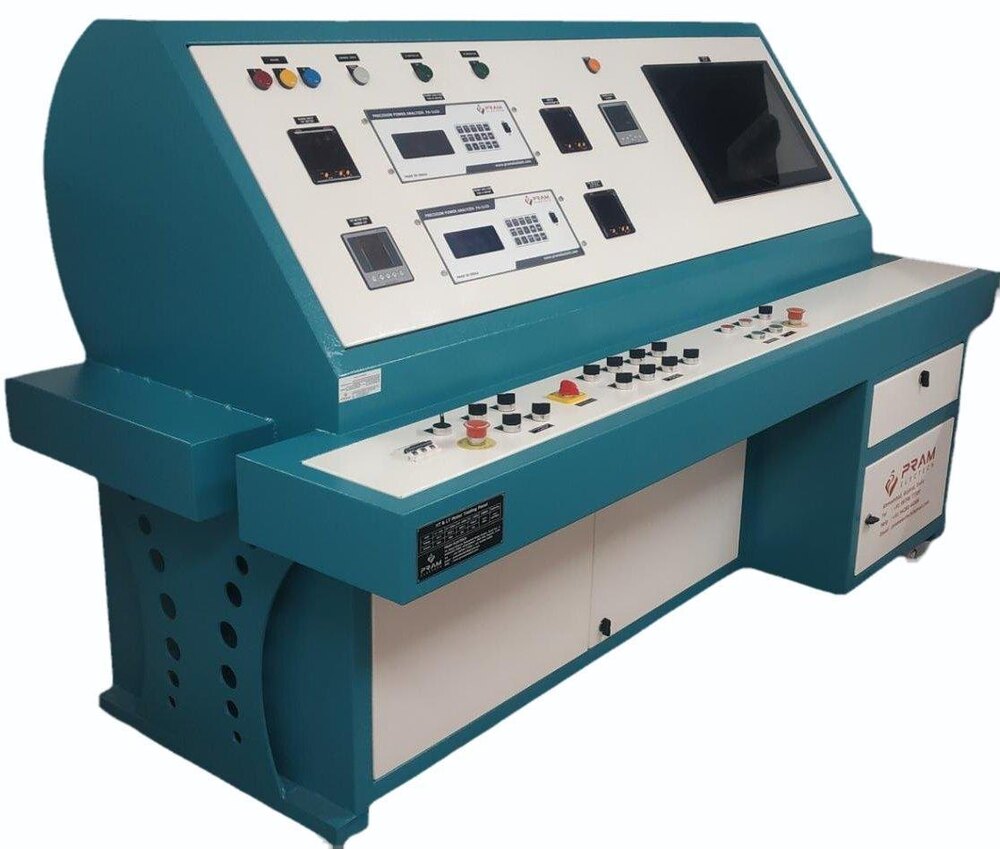

MTP-30 Motor Testing Panel

Name

Specification

Item Descriptions

1.

MotorTesting Panel

Routine Testing Panel for Induction Motor

415V, 50A

VIF Meter Setting

For  CT P : - Set 50A(Mains Supply)

PT P : - Set 350V(Mains Supply)

For  PT S: - Set 350V(Mains Supply)

2.

Over Current Relay Settings

DOL M1 Output

0.12KW-0.18KW

For  CT.P : - Set 10A | CT S : - Set 5A (Default)

For  SOC : - Set 0.8A  | Trp : - Set 2 Sec

3.

Over Current Relay Settings

DOL M2 Output

0.25KW-3KW

For  CT.P : - Set 10A | CT S : - Set 5A (Default)

For  SOC : - Set 7A  | Trp : - Set 2 Sec

Over Current Relay Settings

DOL M3 Output

4KW-11KW

For  CT.P : - Set 30A | CT S : - Set 5A (Default)

For  SOC : - Set 20A  | Trp : - Set 2 Sec

Over Current Relay Settings

15KW-22KW

For  CT.P : - Set 50A | CT S : - Set 5A (Default)

For  SOC : - Set 37A  | Trp : - Set 2 Sec

6.

Power Analyzer

Voltage: - 600 VAC

Current: - 80 AAC

Phase: - 3-Phase

3-Phase Power Analyzer 600V (Phase Neutral) & 1050V (Phase to Phase) & 80A Direct Measurement with accuracy of 0.1% rdg + 0.1% rng

7.

Break Output

5A

415V 5A AC, 230V 5A AC, 110V 5A AC, 24V - 5A DC
