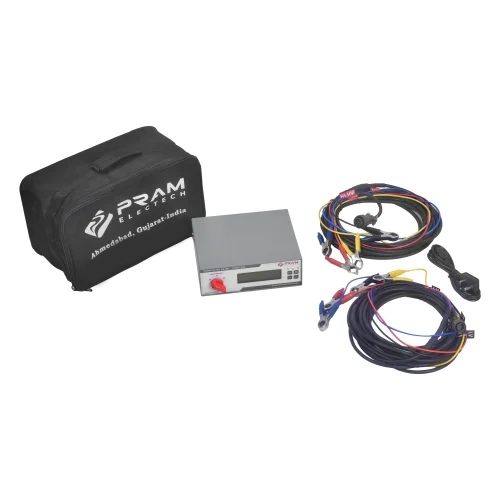

TTRM3-500 High-accuracy Three Phase Transformer Turns Ratio Meter

Name: TTRM3-500 High-accuracy Three Phase Transformer Turns Ratio Meter
Brand: PRAM ELECTECH
Price: 38500.0 INR
Availability: InStock

Price 38500.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

TTRM3-500 High-accuracy Three Phase Transformer Turns Ratio Meter Specification

Usage
Industrial

Material
Aluminium

Size
170 mm X 210 mm X 87 mm

Power Supply
230V

Height
87 Millimeter (mm)

Product Type
standard

Accuracy
0.1 %

Weight
4 Kilograms (kg)

Display Type
Digital Only

Length
170 Millimeter (mm)

Range
1-500 Ratio

Width
210 Millimeter (mm)

TTRM3-500 High-accuracy Three Phase Transformer Turns Ratio Meter Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
100 Pieces Per Month

Delivery Time
15 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
iso

About TTRM3-500 High-accuracy Three Phase Transformer Turns Ratio Meter

Power Supply	110V
Operation Mode	Automatic
Phase Configuration	Single Phase
Compatible Equipment Type	CT/PT
Brand	Pram Electech
Accuracy	0.1%
Usage/Application	Industrial
Ratio Range	500 TR
Display Type	LCD Display
Measurement Range	1-5000
Weight	5 Kg
Measurement Type	Turns Ratio
Material	Aluminium
Resolution	0.01
Model Name/Number	TTRM-500
Measurement Target	Transformer

Transformer turns ratio is the ratio of the number of turns in the high voltage winding to that in the low voltage winding.

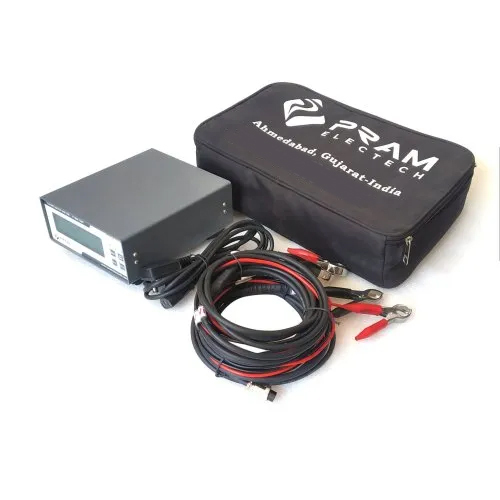

Accurate Measurements of 1 Phase and 3 Phase Transformer / CT & PT Turns Ratio.
Turns Ratio Range : 1 to 500, 5 digit resolution (for transformers / CT & PT testing).
Excitation Voltage & Current Range : 60 V AC, 250mA 50Hz (Other Range Available on Request) (Input: 230V 50Hz).

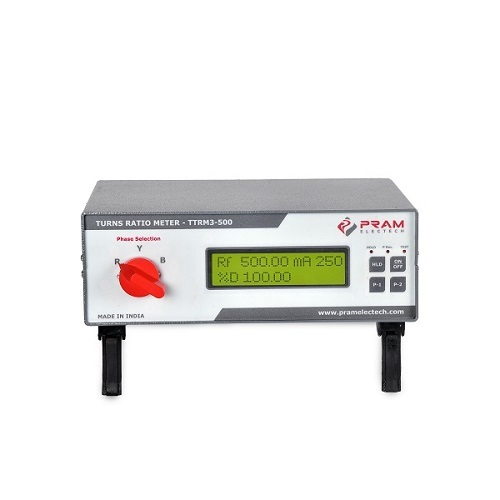

Switch for Test ON/OFF, Hold, Parameters-1 & Parameters-2.
Inbuilt Over Current Protection for Shorten Winding
Test ON, Polarity Reverse & Measurement Hold Indication.
16 X 2 Jumbo LCD for viewing Parameters easily.
Parameter to be Measured : Tr (Turns Ratio), mA (Excitation Current), HV (Applied Voltage in HV Side, LV (Measured Voltage in LV Side).
Accuracy :0.2% reading 0.1% range..

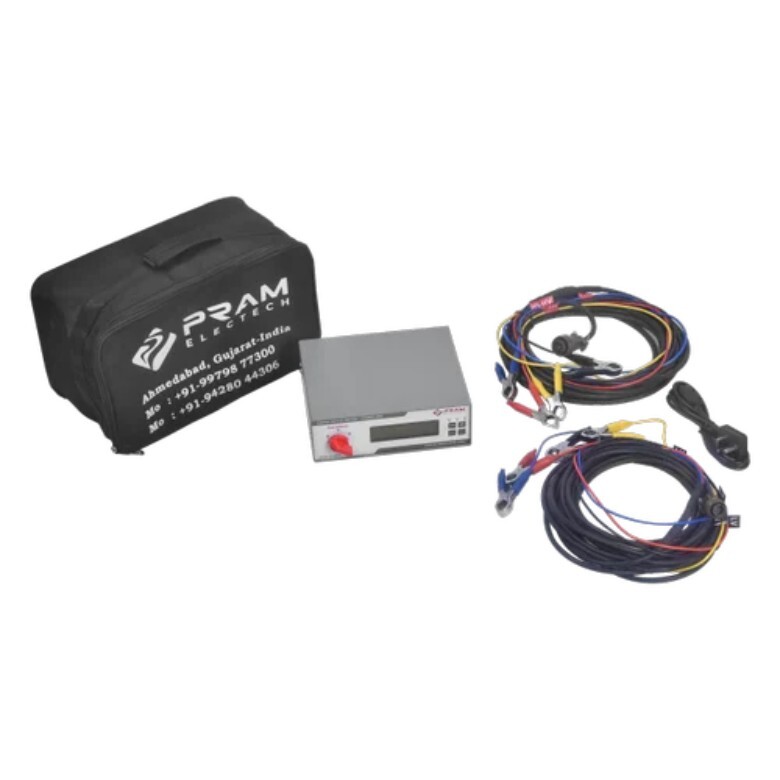

Accessories : Test Lead with Crocodile Clamp, Mains Cord, Instruction Manual.
Compliance to ANSI/IEEE C57.12.90 and IEC 600076.1 (2000) & Other Standards

The TTRM3-500 Three Phase Transformer Turns Ratio Meter is an industrial grade meter designed to provide accurate readings for measuring the turns ratio of three-phase transformers. With a digital display, the meter offers an accuracy of 0.2%, making it reliable for use in various industrial applications. The product is made of lightweight and durable aluminum material, weighing only 4 kilograms, which makes it easy to carry around and use on different transformer models. The meters range of 1-500 ratio makes it highly versatile, and it comes with a power supply of 230V. With this meter, you can easily determine the turns ratio of any three-phase transformer and accurately calculate the voltage and current ratios.

FAQs of TTRM3-500 Three Phase Transformer Turns Ratio Meter:

Q: What is the accuracy of the TTRM3-500 Three Phase Transformer Turns Ratio Meter?

A: The meter provides an accuracy of 0.2%, making it highly reliable for use in industrial applications.

Q: What is the range of the TTRM3-500 Three Phase Transformer Turns Ratio Meter?

A: The meter has a range of 1-500 ratio, making it highly versatile and ideal for use on different transformer models.

Q: What is the power supply of the TTRM3-500 Three Phase Transformer Turns Ratio Meter?

A: The meter comes with a power supply of 230V, which is ideal for use in most industrial settings.

Q: What is the weight of the TTRM3-500 Three Phase Transformer Turns Ratio Meter?

A: The meter is made of lightweight aluminum material and weighs only 4 kilograms, making it easy to carry around and use on different transformer models.

Q: What is the display type of the TTRM3-500 Three Phase Transformer Turns Ratio Meter?

A: The meter has a digital-only display, making it easy to read and providing accurate readings for measuring the turns ratio of three-phase transformers.
