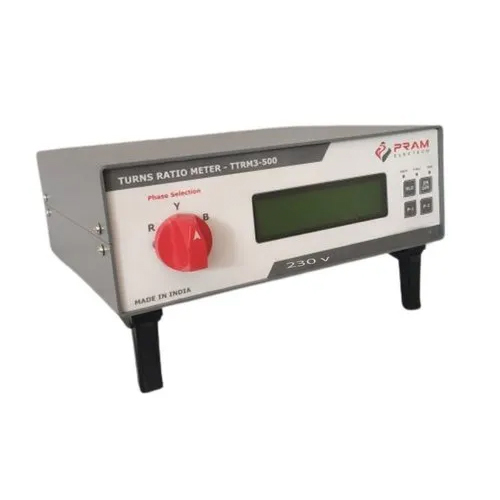

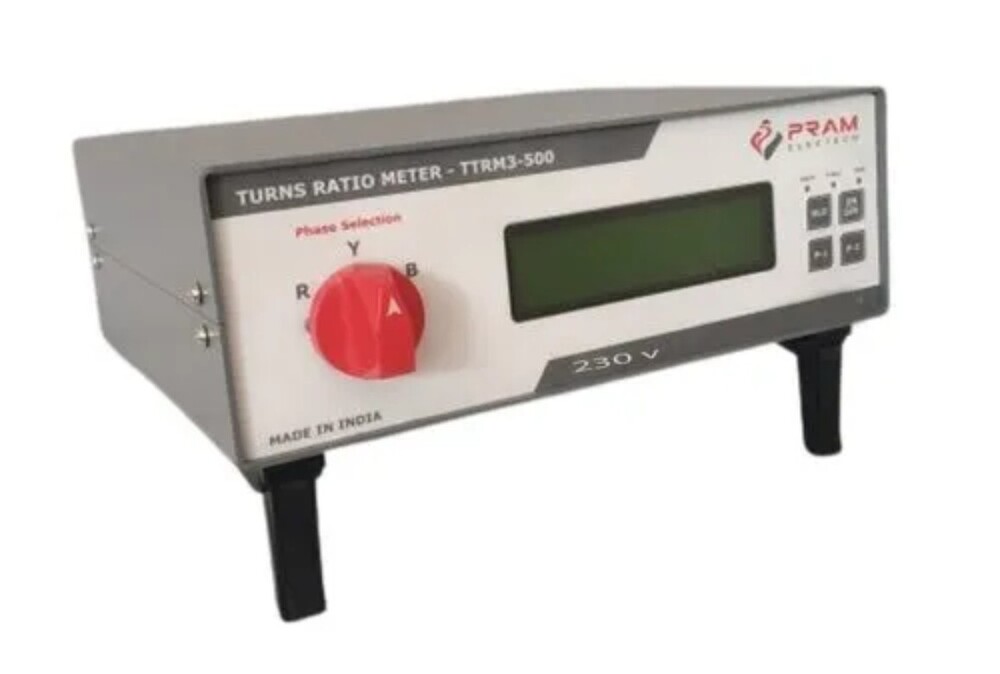

TTRM3-500 Transformer Ratio Meter for Industrial Transformer Testing

Name: TTRM3-500 Transformer Ratio Meter for Industrial Transformer Testing
Brand: PRAM ELECTECH
Price: 42500 INR
Availability: InStock

Price 42500 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

TTRM3-500 Transformer Ratio Meter for Industrial Transformer Testing Specification

Usage
Industrial

Material
Aluminium

Size
170 mm X 210 mm X 87 mm

Power Supply
230V

Height
87 Millimeter (mm)

Product Type
standred

Accuracy
0.1 %

Weight
3 Kilograms (kg)

Display Type
Digital Only

Range
450 TR

Width
210 Millimeter (mm)

Length
170 Millimeter (mm)

TTRM3-500 Transformer Ratio Meter for Industrial Transformer Testing Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
10 Pieces Per Month

Delivery Time
15 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About TTRM3-500 Transformer Ratio Meter for Industrial Transformer Testing

Power Supply	230V
Operation Mode	Automatic
Phase Configuration	Single Phase
Compatible Equipment Type	Power Transformer
Brand	Pram Electech
Accuracy	0.1%
Usage/Application	Industrial
Ratio Range	450 TR
Display Type	LCD Display
Measurement Range	1-1000
Weight	5 Kg
Measurement Type	Turns Ratio
Model Name/Number	TTRM3-500
Measurement Target	Transformer

Transformer turns ratio is the ratio of the number of turns in the high voltage winding to that in the low voltage winding.

Accurate Measurements of 1 Phase and 3 Phase Transformer / CT & PT Turns Ratio.
Turns Ratio Range : 1 to 500, 5 digit resolution (for transformers / CT & PT testing).
Excitation Voltage & Current Range : 60 V AC, 250mA 50Hz (Other Range Available on Request) (Input: 230V 50Hz).
Switch for Test ON/OFF, Hold, Parameters-1 & Parameters-2.
Inbuilt Over Current Protection for Shorten Winding
Test ON, Polarity Reverse & Measurement Hold Indication.
16 X 2 Jumbo LCD for viewing Parameters easily.
Parameter to be Measured : Tr (Turns Ratio), mA (Excitation Current), HV (Applied Voltage in HV Side, LV (Measured Voltage in LV Side).
Accuracy : 0.2% reading 0.1% range..
Accessories : Test Lead with Crocodile Clamp, Mains Cord, Instruction Manual.
Compliance to ANSI/IEEE C57.12.90 and IEC 600076.1 (2000) & Other Standards

The TTRM3-500 Transformer Ratio Meter is a high-quality industrial device that can accurately measure the ratio between primary and secondary windings of a transformer. With a range of 500 TR and an accuracy of 0.1%, this meter is perfect for use in power plants, substations, and other industrial settings where precise measurements are necessary. The device is housed in a durable aluminium casing and features a digital display for easy reading. With a power supply of 230V, this meter is capable of performing consistently and reliably.

FAQs of TTRM3-500 Transformer Ratio Meter:

Q: What is the usage of the TTRM3-500 Transformer Ratio Meter?

A: The TTRM3-500 Transformer Ratio Meter is an industrial device used for measuring the ratio between primary and secondary windings of a transformer.
